Industrial RK3568 Motherboard Android 11.0 Smart Board With Wifi BT USB 16/32/64GB Storage

Name: Industrial RK3568 Motherboard Android 110 Smart Board With Wifi BT USB 163264GB Storage
Brand: Sunchip,ADW
Price: 1 USD

Brand Name : Sunchip,ADW

Model Number : AD-C33P

Certification : CE ROHS FCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal, L/C

Supply Ability : 30,000PCS

Delivery Time : Samples: 2-5 days; MP: 15-30days

Packaging Details : Bubble bag 1pcs/bag 60bags/carton

CPU solution : RK3568 Quad-Core Cortex-A55

Display interface : LVDS/EDP/MIPI for display

Ethernet : 10/100/1000M Ethernet

Function : WIFI, BT, Wlan, Audio, speaker,etc.

Ram : 2/4/8GB

Network : Wi-Fi 802.11 B/g/n

Pcie : YES, 3G/4G PCIE

Usb : USD2.0, USB3.0

Dimensions : 150.1mm x 85.2mm

Operating System : Android 11

Ethernet Port : 1

Audio : 3.5mm Audio Jack

Touch : Support touch interface

Mcu : for low power control

Storage : 16/32/64GB

Power Supply : 12V DC

Language : Multi-language

Rtc : YES

Chipset : Rockchip RK3568

Edp Interface : support resolution 1920*1080P

Working Temperature : -10℃~50℃

Contact Now

RK3568 Android Motherboard

Product Parameter

CPU	Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency	Up to 2.0 GHz
RAM	DDR4 2G/4G optional
Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
	MIPI interface
	EDP interface
Screen voltage	Support 3.3V/5V/12V optional
Touch screen	Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
The internet	With RJ45 interface, support 10/100/1000M Ethernet.
	Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT5.2
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
	3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
	TF card, maximum support 32GB
	Class D power amplifier: 3W*2 8 ohms, support microphone
	HD 2.0 output
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video	Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture	Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter	Input: AC100-240V.50-60HZ, output: DC12V 3A

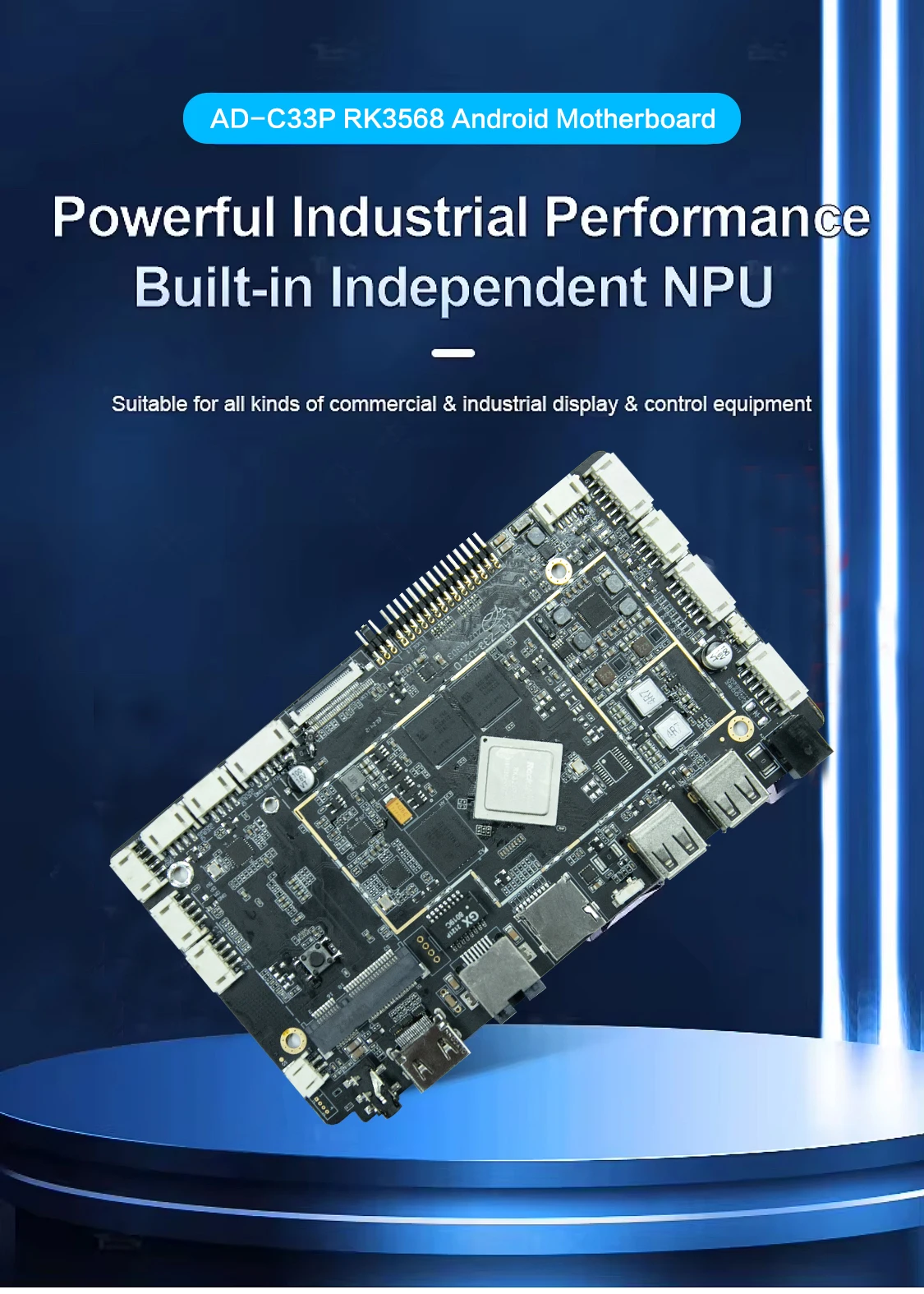

Android board pictures:

Industrial RK3568 Motherboard Android 11.0 Smart Board With Wifi BT USB 16/32/64GB Storage

Products Description

About Sunchip

Established in 2012, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base.

Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields. We regards quality as life and already passed ISO international quality system certification ISO9001/ MFi / CE / RoHs / FCC.From raw materials procurement, product production, testing, packaging, marketing and so on each link are carried out in strict accordance with the national standard quality.

Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.

Industrial RK3568 Motherboard Android 11.0 Smart Board With Wifi BT USB 16/32/64GB Storage

Payment and Delivery

1.Packing: carton box or wood case

2.Payment methods: accept T/T,Western Union,Paypal and Cash.

3.RMA Policy: customer bear all
the freight and duty charge to factory,and the factory afford return freight charge.

4.Warranty: 12 months warranty. Paid
maintenance over 12 months.

5.Remark: ROHS, CE & FCC certificates in e-file format are available.

6.MOQ: 1pc, sample order are

welcome for your evaluation.

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?

A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!

About Sunchip :

SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.

We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.

Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.

Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

We are looking forward to cooperating, developing and growing with you sincerely.
